Supertech Forged Piston Set - Duratec 12.5:1 (2.3L) 11.3:1 (2.0L) 88mm
HomeStore

Supertech Forged Piston Set - Duratec 12.5:1 (2.3L) 11.3:1 (2.0L) 88mm

Supertech Forged Piston Set - Duratec 12.5:1 (2.3L) 11.3:1 (2.0L) 88mm

$748.44
Supertech Forged Piston Set - Duratec 12.5:1 (2.3L) 11.3:1 (2.0L) 88mm
$748.44

The Story

Supertech engineers have more than 40 years of experience in the design and production of racing pistons. Our pistons are manufactured from extruded high silicon, enhanced 4032 alloy (with additional Cu, Ni & Mg) that has low thermal expansion and features excellent wear resistance. Additionally, the inclusion of enhanced 4032 alloy offers a much higher thermal conductivity. Using this alloy our Supertech pistons have withstood up to 42psi of turbo boost with alcohol, without any problems. All of our pistons feature reduction grooves, honed and reamed pin bores for the most precise fit, while our wrist pins are constructed of cold extruded chrome moly steel for high strength to be used with wire clip locks.
  • Bore: 88.00mm (Oversize)
  • Over Size: +0.5mm
  • Comp Ratio: 12.5:1 (2.3L) 11.3:1 (2.0L)
  • Volume CCs: 1
  • Head CCs: 42
  • Comp Height: 1.122"(28.50mm)
  • Stroke: 3.7(3.271")
  • Rod Length: 6.094"
  • Pin Diam: 21mm(.827")
  • Weight: 308grs
  • Ring P/N: GNH8800

Application:
Duratec 2.0L & 2.3L

Supertech Forged Piston Set - Duratec 12.5:1 (2.3L) 11.3:1 (2.0L) 88mm - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

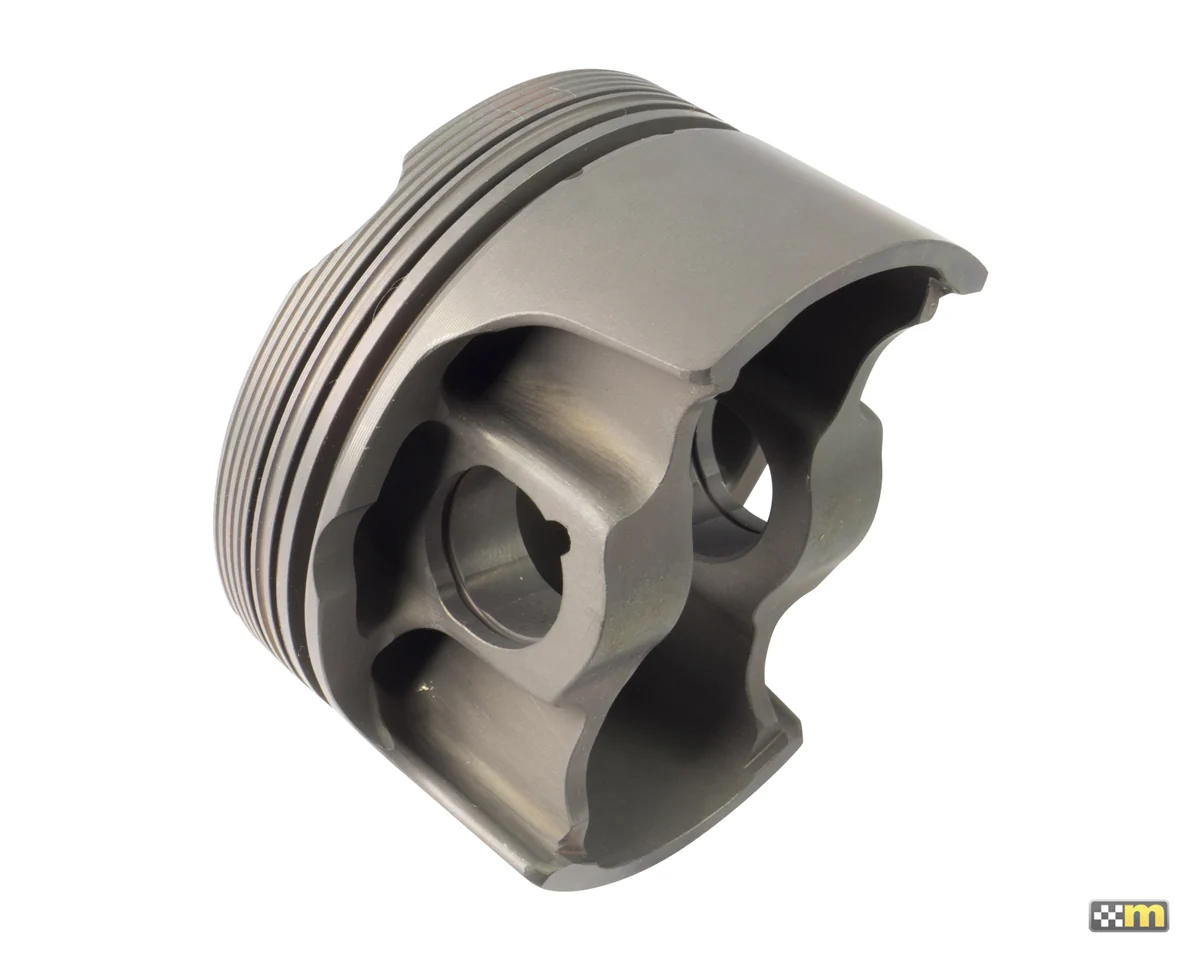

Supertech Forged Piston Set - Duratec 12.5:1 (2.3L) 11.3:1 (2.0L) 88mm - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Supertech engineers have more than 40 years of experience in the design and production of racing pistons. Our pistons are manufactured from extruded high silicon, enhanced 4032 alloy (with additional Cu, Ni & Mg) that has low thermal expansion and features excellent wear resistance. Additionally, the inclusion of enhanced 4032 alloy offers a much higher thermal conductivity. Using this alloy our Supertech pistons have withstood up to 42psi of turbo boost with alcohol, without any problems. All of our pistons feature reduction grooves, honed and reamed pin bores for the most precise fit, while our wrist pins are constructed of cold extruded chrome moly steel for high strength to be used with wire clip locks.
  • Bore: 88.00mm (Oversize)
  • Over Size: +0.5mm
  • Comp Ratio: 12.5:1 (2.3L) 11.3:1 (2.0L)
  • Volume CCs: 1
  • Head CCs: 42
  • Comp Height: 1.122"(28.50mm)
  • Stroke: 3.7(3.271")
  • Rod Length: 6.094"
  • Pin Diam: 21mm(.827")
  • Weight: 308grs
  • Ring P/N: GNH8800

Application:
Duratec 2.0L & 2.3L
