The Story
The Mountune oil take-off plate is a convenient way to plumb in a remote oil filter housing or other oil system components. This product also allows an in-line oil cooler to be fitted and is a perfect addition to our dry sump system.
Plates are supplied with motorsport-grade O-rings to seal the plate to the block in place of the OEM filter housing. The housing also has a pressure sensor take-off which uses a 1/8 NPT thread, plug included.

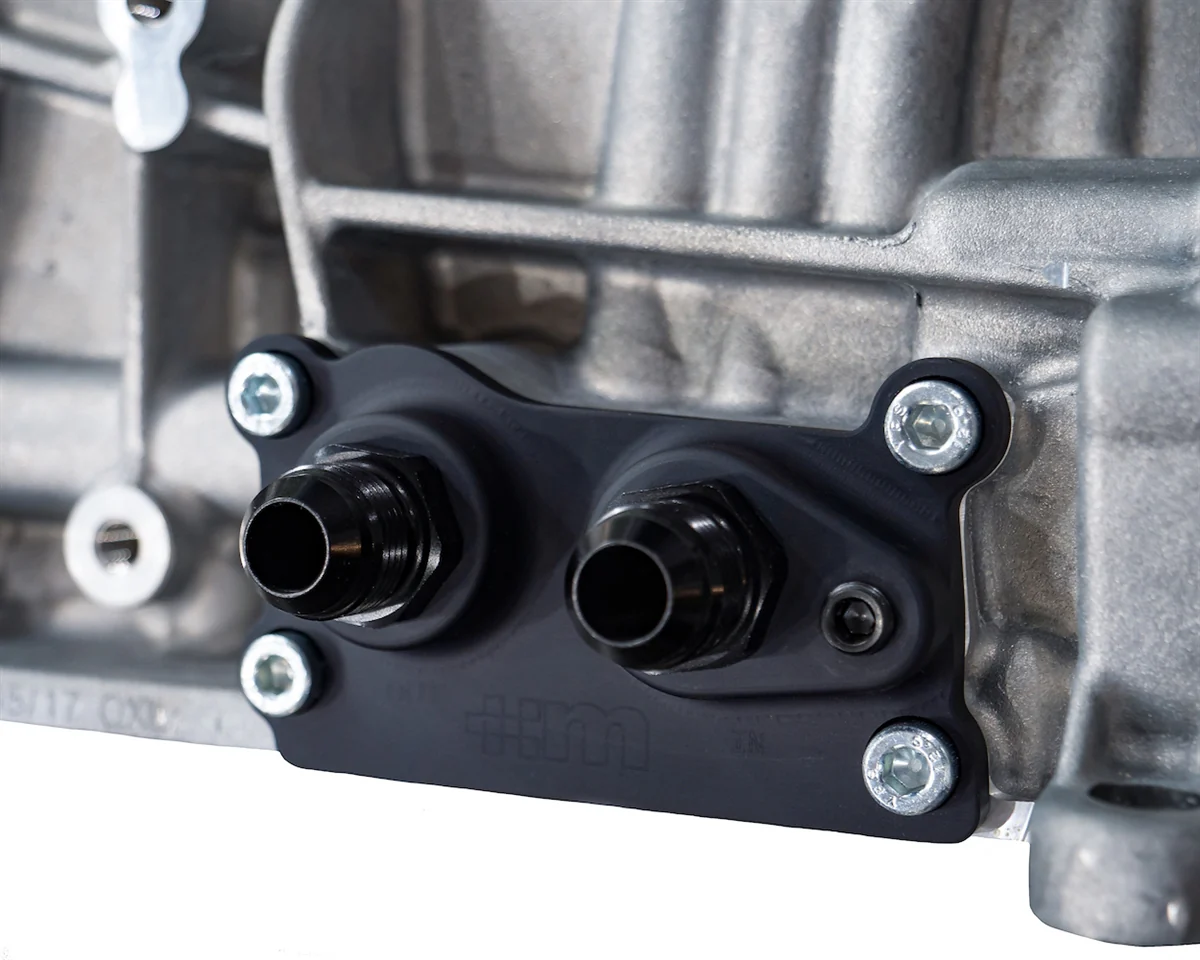

The plate bolts directly to the 2.3L EcoBoost engine block and is ideal for installations with a limited amount of packaging space. As used in many of our motorsport applications.
Features:
- Billet oil take-off plate with hard anodized finish
- High temp BUNA-N O-rings
- 10AN Fittings with Viton O-rings

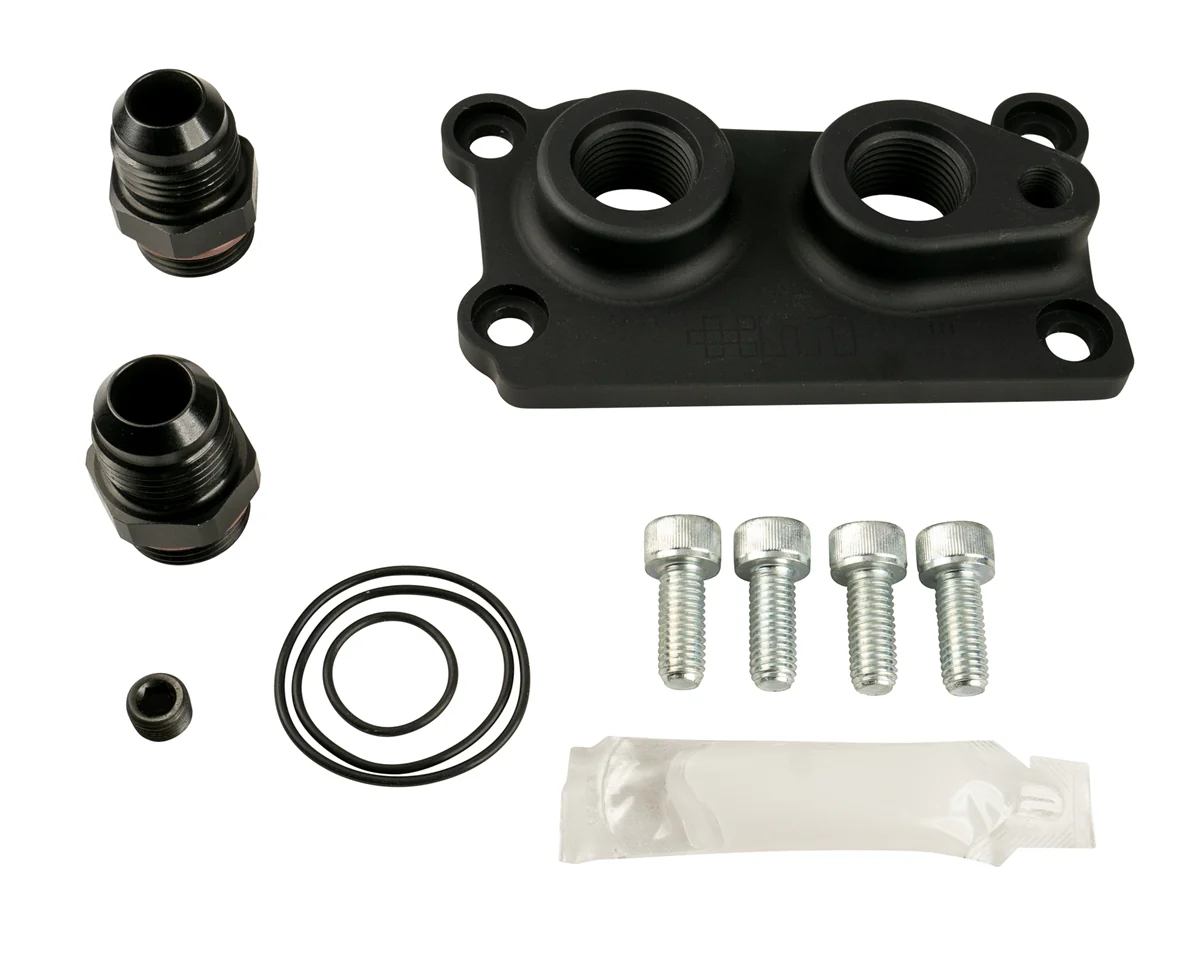

Includes:
- Take-off plate
- BUNA-N O-rings
- 10AN ORB to 10AN Male Fittings
- 1/8 NPT plug
- Installation hardware
- O-ring assembly lube
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Mountune oil take-off plate is a convenient way to plumb in a remote oil filter housing or other oil system components. This product also allows an in-line oil cooler to be fitted and is a perfect addition to our dry sump system.
Plates are supplied with motorsport-grade O-rings to seal the plate to the block in place of the OEM filter housing. The housing also has a pressure sensor take-off which uses a 1/8 NPT thread, plug included.
The plate bolts directly to the 2.3L EcoBoost engine block and is ideal for installations with a limited amount of packaging space. As used in many of our motorsport applications.
Features:
- Billet oil take-off plate with hard anodized finish
- High temp BUNA-N O-rings
- 10AN Fittings with Viton O-rings
Includes:
- Take-off plate
- BUNA-N O-rings
- 10AN ORB to 10AN Male Fittings
- 1/8 NPT plug
- Installation hardware
- O-ring assembly lube
